Assembly Equipment

We at HACI Ltd. supply Custom Crimp hydraulic hose crimpers. Custom crimp is one of the leading U.S. producers of hydraulic hose crimpers, crimping dies and accessories for the hose crimping industry. With full in house design, engineering and production at custom crimp we can recommend the optimum combination of dies and equipment to best meet a customers requirements.


Please call or email us with your enquiries.

Mobile Hose Crimper D100H
Mobile hose crimper with micrometer setting.
Technical specifications:
  • 1" 2-wire hydraulic hoses*
  • ¾ 4-wire hydraulic hoses*
  • 1" industrial hoses*
  • Crimp force 35t
  • Opening w/o dies n/a
  • Die travel n/a
  • 2-stage hand pump
  • Incl. carry base plate
  • Dimensions L x W x H 400 x 400 x 425 mm.
  • Weight 32 Kg.
Mobile Hose Crimper D100P
Mobile hose crimper with micrometer setting.
Technical specifications:
  • 1" 2-wire hydraulic hoses*
  • ¾ 4-wire hydraulic hoses*
  • 1" industrial hoses*
  • Crimp force 35t
  • Opening w/o dies n/a
  • Die travel n/a
  • Pneumatic pump
  • Incl. carry base plate
  • Dimensions L x W x H 400 x 400 x 425 mm.
  • Weight 38 Kg.
Workshop Hose Crimper EU32MIC
Workshop hose crimper with micrometer setting.
Technical specifications:
  • 1 ¼ 4-wire hydraulic hoses*
  • 2" industrial hoses*
  • Crimp force 155t
  • Opening w/o dies 125mm
  • Die travel +38mm
  • Motor 1,5KW 400V 3Ph
  • Dimensions L x W x H 600 x 380 x 480 mm
  • Weight 115Kg.
Workshop Hose Crimper EU38MIC
Workshop hose crimper with micrometer setting.
Technical specifications:
  • 2" 4-wire hydraulic hoses*
  • 2" industrial hoses*
  • Crimp force 240t
  • Opening w/o dies 120mm
  • Die travel +38mm
  • Motor 3,6KW 400V 3Ph
  • Dimensions L x W x H 740 x 510 x 710 mm
  • Weight 235Kg.
Workshop Hose Crimper EU50MIC
Workshop hose crimper with micrometer setting.
Technical specifications:
  • 2" 6-wire hydraulic hoses*
  • 3" industrial hoses*
  • Crimp force 300t
  • Opening w/o dies 160mm.
  • Die travel +38mm
  • Motor 3,6KW 400V 3Ph
  • Dimensions L x W x H 740 x 510 x 815mm.
  • Weight 260Kg.
Production Hose Crimper EU38ACT
Production hose crimper with touch screen control.
Technical specifications:
  • 2" 4-wire hydraulic hoses*
  • 2" industrial hoses*
  • Crimp force 240t
  • Opening w/o dies 120mm
  • Die travel +38mm
  • Motor 3,6KW 400V 3Ph
  • Dimensions L x W x H 740 x 510 x 710 mm
  • Weight 235Kg.
Production Hose Crimper EU600ACT
Production hose crimper with touch screen control.
Technical specifications:
  • 2" 6-wire hydraulic hoses*
  • 6" industrial hoses*
  • Crimp force 350t
  • Opening w/o dies 273mm.
  • Die travel +128mm
  • Motor 5,5KW 400V 3Ph
  • Dimensions L x W x H 560 x 915 x 1450mm.
  • Weight 1600Kg. S



Click here to download the available standard die sizes and special dies on request.

HS150 (1 HP) Hose Saw
Technical specifications:
  • Up to 1-¼" 4 wire hose and up to 1" 6 wire hose
  • available only in 110 Volt configuration
HS300 (3 HP) Hose Saw
Technical specifications:
  • Up to 1-¼" 6 wire hose and up to 2" 2 wire hose
  • resettable counter keeps track of the number of cuts made
  • adjustable hose channel measures and supports hose during cutting
  • Mister Kit (P/N 103073) sprays fine mist of air tool oil for longer blade life and smoother cuts.
  • "Hose Helper" acts as third hand to retain the hose in position. Can be mounted on either end of the saw table.
  • available in 110 220 Volt Single Phase, 220 Volt 3 Phase, 480 Volt 3 Phase

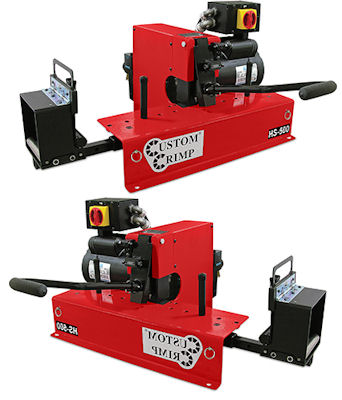

HS500 (5 HP) Hose Saw
Technical specifications:
  • Up to 2" 6 wire hose with the serrated blade
  • resettable counter keeps track of the number of cuts made
  • adjustable hose channel measures and supports hose during cutting
  • Mister Kit (P/N 103073) sprays fine mist of air tool oil for longer blade life and smoother cuts.
  • "Hose Helper" acts as third hand to retain the hose in position. Can be mounted on either end of the saw table.
  • available in 110 220 Volt Single Phase, 220 Volt 3 Phase, 480 Volt 3 Phase

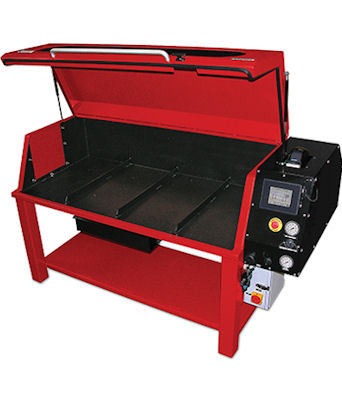

High Pressure Test Bench BE3500PLC
For testing hydraulic hoses up to 3500Bar (50.000PSI)
Technical specifications:
  • Max. hose size 2"
  • Up to 1" hose size one can test up to 4 hoses at a time
  • Opens at workbench height for easy loading of the test chamber
  • Also for testing of complete hose bulks (depending on bulk size)
  • ¼", ½", ¾", 1" standard adapter included, special adapters on request.
  • Water circulation with resevoir. No emulsion required.
  • Air pressure required 6 Bar
  • Voltage 230V 1Ph
  • Solid and robust build for long durability
  • Test chamber dimensions 1830 x 510 x 920mm
  • Weight 330 Kg
Skiving Device D370
Manual skiving device for inside and outside skiving. Inside skiving knife infinitely variable for better skiving results.
Technical specifications:
  • Outside skiving from DN6 to DN50
  • Inside skiving from DN20 to DN50
  • Outside and inside skiving knifes infinitely variable
  • Vise bracket for easy use
  • Incl. carry case for skiving device and inside skiving knifes, outside skiving knifes separately
  • Dimensions L x W x H 450 x 350 x 110 mm
  • Weight 14 Kg.

Inside skiving knifes also separately available.

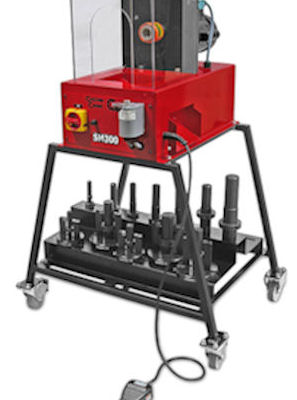

Skiving Machine D375
Inside and outside skiving up to 2" Operated via foot pedal switch.
Technical specifications:
  • Operation via double foot pedal switch
  • Right/left direction
  • Hose during skiving process fully covered
  • Holding mandrela for outside skiving from DN06 to DN50
  • Inside skiving knifes from DN20 to DN50
  • Basket for rubber waste material
  • Dimensions : L x B x H : 760 x 240 x 330 mm.
  • 400V 3Ph Motor 0,55KW.
  • Weight : 30 Kg.

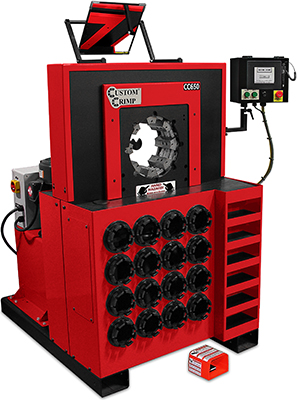

350 Ton CC600 Series Crimper


  Technical specifications:
  • 350 Ton of crimping force can crimp:
       1/4 in to 2 in 6 wire hose
       3/16 in to 6 in industrial hose
  • Max Die opening: Die size plus 128mm
  • Manual or automatic ACTTM controls
  • 145mm master dies standard
  • 99mm adapter dies included
  • 7.5 HP 2 speed pump
  • 230 V 3 Ph power standard
  • 440-480 V 3 Ph power optional
  • Manual Micrometer is also available on the CC600

This 350 Ton CC600 Series crimper has the ability to crimp hoses from 1/4 inch to 6 inches diameter with either the proven and fully automatic ACTTM control or with the optional manual micrometer control.
